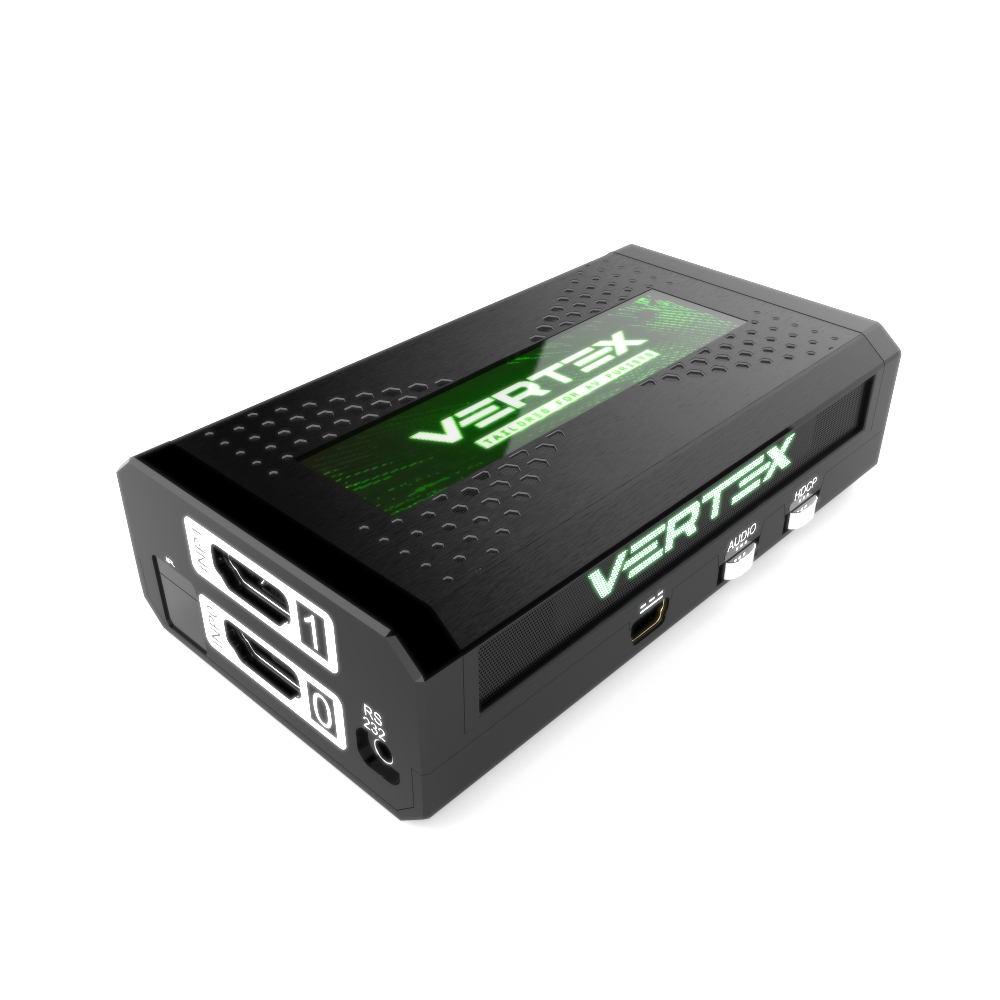

Vertex 4K60 4:4:4 600MHz

$319.00

Vertex scored 9/10 on AVforums review!
You can remotely control Vertex by using GO2 (RS232 Dongle with Android/iOS APP) or GoBlue (USB Dongle with Android/iOS APP)

Vertex Kit includes:

Vertex central unit
Choice of power supply
USB Y cable (5ft)
DB9 > RS232 jack cable (4ft)

State of the art HDMI central for FHD source or sink in UHD/HDR setup or the other way around. Comes with OLED/OSD, huge scaling power and toolkit for researcher, content creator or advanced user.
Support any video and/or audio signal in existence today including DV, HLG, HDR10+, DTS:X, ATMOS and more…

Vertex allows any source (Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays and any sources HDMI audio to be played on any AVR.
With built-in scalers you don’t have to miss any 4K HDR signal because of older legacy equipment in the signal path.

Below you can appreciate some of the OLED pages available:

Clear

Product Description

Information

The 4K Digital Messiah that the AV World have been waiting for is finally a few clicks away from you.
After two years of collecting wishes and feedback from HT hobbyists and professional content creators, we are proud to bring you this exclusive HDfury 10th Anniversary edition that is set to shake the ground of the AV scene.

Vertex is a smart converter for interoperability between legacy equipment, for content creators, calibrators, streamers, digital entertainment centers, UHDTV retail, show sites, data centers, schools, conference or home cinema and much more.
It is a true 2×2 18Gbps HDMI matrix/spliter/switcher/scaler/converter/audio de-embedder, supporting any HDMI, any HDCP and any HDR up to HDR10+, HLG or Dolby Vision (including LLDV).
HDMI Audio is compatible with any format in existence today. HDMI2.1 features such as Auto Low Latency Mode and Variable Refresh Rate are supported for EDID signaling and source detection.
It provides full EDID management for an optimal handling of today’s wide variety of sources and displays and comes with OLED, OSD, IR, RS232 and stereo or optical audio output for ARC up to Atmos®, DD+®, Dolby® 7.1, DTS® and LPCM.

Offering more than all Linker scaling benefits and Integral splitting advantages combined, Vertex will push any setup to its highest state of work and provide you with relevant information and possible interaction.
Instantly get and feel the HDMI supervisor power through OSD, OLED, Windows GUI, RS232, iOS/Android APP (with GoBlue) and more…
Note that it have the best 18Gbps signal integrity ever seen for a 5v device, thus ensuring seamless integration even with marginal cables that would otherwise not work with others devices for high bandwidth signals.

It is more than an AV geek device, it is crafted with a lovely passion and tailored for AV purists.

Technical specs

HDMI revision: HDMI 2.0b (Level A) 600Mcsc – 18Gbps
Vertex Support: 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, ARC, ALLM, IMAX
Max Resolution: 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b

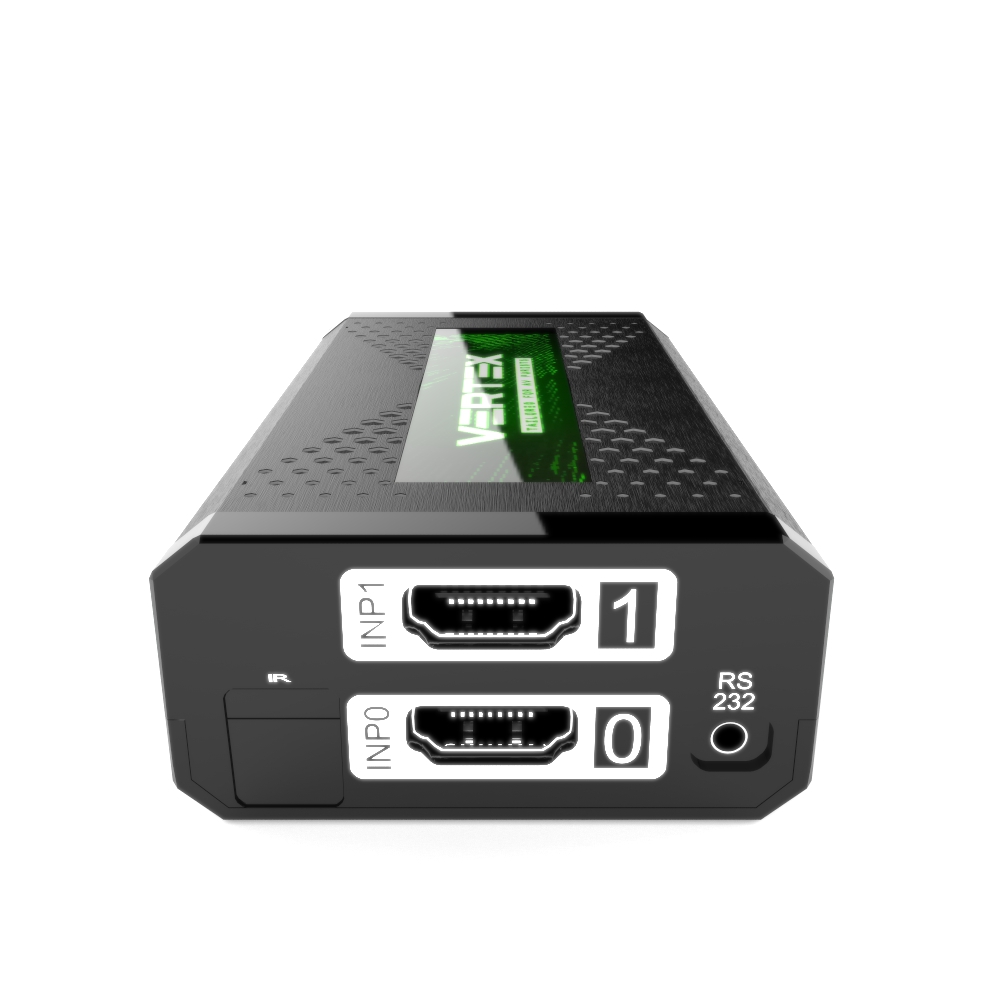

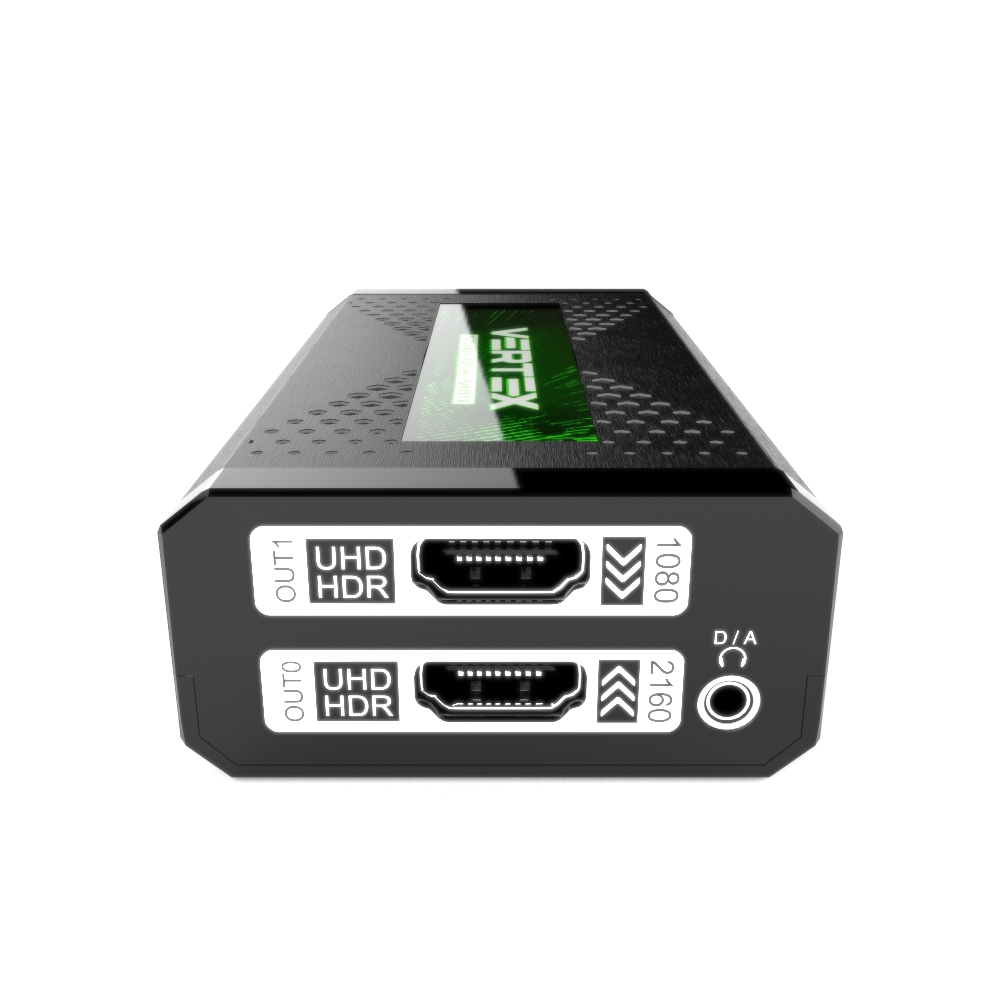

I/O: 2 HDMI In, 2 HDMI Out, IR, RS232, USB, Analog Jack, Optical Out.
Upscale port: FHD 1080p to UHD 2160p & 4K/DCI
Downscale port: UHD 2160p & 4K/DCI to FHD 1080p
Signal Conversion: Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP
HDCP Conversion: Any HDCP to any HDCP with CST1 support
Operating Modes: 18Gbps Scaler, Switcher, Splitter & Matrix with CEC, ARC and EDID management
Special Modes: CEC Command, HTPC, Disable HDR, HDMI Doctor and JVC Macro.
EDID Modes: 10 EDID Flags, 100 EDID Banks (10 custom)
Infoframe Modes: Capture, edit, block or replace HDR metadata, AVI & VSIF.
Read SPD, Audio, HDMI Vendor, HDMI Forum
Control Modes: IR, Windows GUI, RS232 for Linux/MAC/Win, Android/iOS with GoBlue
On Screen Display: Editable with custom text and mask. (cover TV channel logo)
Oled Display: 3.12″ Diagonal, 256×64, 16 green colors
Dimension: 3.9″L x 2.4″W x 0.8″H – in CM: 10 x 6 x 3
Weight: 130g – 0.3 LBS
Other info: Input Lag <1ms (nanoseconds count)

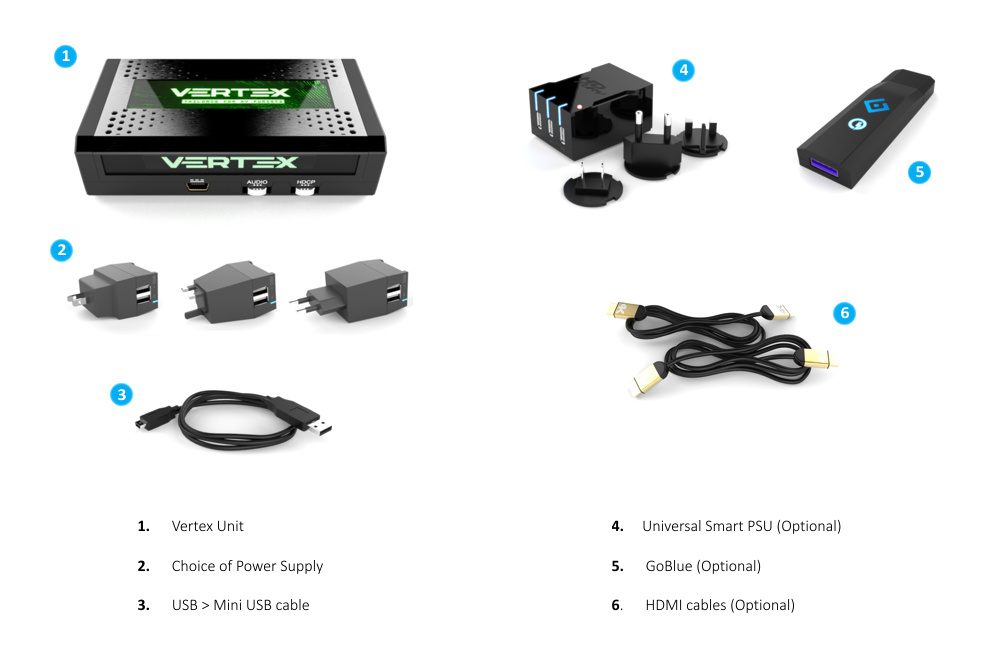

Elements

4K UHD Vertex Elements

FEATURES

Information

All setups suitability

Vertex supports any HDMI, HDCP and HDR sources or sink and operate in-between to ensure all your equipment work at their best capabilities.

AutoSetup Wizard

Think it’s complicated? Vertex can suit any user needs with ease. Simply connect sources and sink devices in the right port and add power, Vertex does the rest.

Unlock HDCP 2.2

Get all advantages from HDCP2.2 sources and keep or convert them per channel to suit any HDMI or HDCP sink.

Info is Everywhere

Whether it is on OLED, OSD, Windows GUI or via Android/iOS APP with the optional GoBlue, your setup info is always available at first sight.

Digital Doctor

Any EDID related issues, HTPC issues or HDMI/HDCP handshake, compatibility or revision issues can be solved with Vertex.

iOS & Android APP

Control Vertex using your tablet or smartphone with the optional GoBlue Bluetooth and IR dongle.

Custom configuration

Share your config with the community, display any text on OSD, set your start page, remove visually annoying or lamp consuming artifacts like TV channel logo and more.

Upscale Port

Upscaling from FHD to UHD up to 18Gbps is available to display your 1080p sources at 2160p on your native 4K display.

Downscale Port

Connect any FHD sink in any UHD setup, play 4K HDR on main stream, and feed your AVR or older display with a 1080p stream. For HDR to SDR, see here.

18Gbps Splitter

1 input replicated to 2 outputs, each individual output can be used to upscale or downscale based on your setup needs.

600 Mcsc Matrix

Vertex can process two 4K HDR signals up to 18Gbps simultaneously and apply scaling individually per channel.

Windows GUI

Access the most advanced Windows GUI we ever created, control your Vertex unit with ease and style through hundreds of options.

Lab & Studio Toolkit

Public API/DLL access and extensive control to extract, edit and inject HDR metadata, AVI and VSIF Infoframe. Read SPD, Audio, Vendor Specific and more.

DOWNLOAD



Android and iOS APP are only available for the owners of GoBlue (optional Bluetooth and Infrared dongle).



Silabs Driver 4.0.0 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 4.0.0 – ZIP – 9.18 Mo 4.0.0 XP / VISTA / WIN7 / WIN8 / WIN10 WIN10
Silabs Driver 3.9.2 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 3.9.2 – ZIP – 1.65 Mo 3.9.2 XP / VISTA / WIN7 / WIN8 / WIN10 XP / VISTA / WIN7 / WIN8 / WIN10

Select the right drivers based on your Windows version and the USB port version you plan to use. Drivers only need to be installed once for all our devices.
Please note that if you connect your HDfury device to a WIN10 computer prior to any driver installation, WIN10 will install driver from the internet automatically, in such case you do not need to install any drivers manually and you can just proceed with using utility and updaters software from driver 3.9.2 directory. Each below downloads, once downloaded and extracted will provide utility and updaters for either 3.9.2 or 4.0.0 driver.

PC Windows GUI Software + Firmware Updater + IR codes list + RS232 commands Version Format Size Date
[09-JAN-20] 4K VERTEX GUI 1.34 – FW 1.38.1.45 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 09-JAN-20
[08-NOV-19] 4K VERTEX GUI 1.34 – FW 1.37.1.45 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 08-NOV-19
[26-APR-19] 4K VERTEX GUI 1.34 – FW 1.37.1.44 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 26-APR-19
[04-APR-19] 4K VERTEX GUI 1.34 – FW 1.37.1.43 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 04-APR-19
[26-DEC-18] 4K VERTEX GUI 1.34 – FW 1.36.1.43 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 26-DEC-18
[10-DEC-18] 4K VERTEX GUI 1.34 – FW 1.36.1.41 – ZIP – 12 Mo GUI 1.34 ZIP 12 Mo 10-DEC-18
[17-OCT-18] 4K VERTEX GUI 1.33 – FW 1.36.1.37 – ZIP – 12.6 Mo GUI 1.33 ZIP 12.6 Mo 17-OCT-18
[03-SEP-18] 4K VERTEX GUI 1.32 – FW 1.33.1.35 – ZIP – 12.6 Mo GUI 1.32 ZIP 12.6 Mo 03-SEP-18
[03-AUG-18] 4K VERTEX GUI 1.32 – FW 1.32.1.34 – ZIP – 12.6 Mo GUI 1.32 ZIP 12.6 Mo 03-AUG-18
[27-JUN-18] 4K VERTEX GUI 1.31 – FW 1.32.1.34 – ZIP – 12.6 Mo GUI 1.31 ZIP 12.6 Mo 27-JUN-18
[13-JUN-18] 4K VERTEX GUI 1.31 – FW 1.32.1.33 – ZIP – 12.6 Mo GUI 1.31 ZIP 12.6 Mo 13-JUN-18
[06-JUN-18] 4K VERTEX GUI 1.31 – FW 1.32.1.32 – ZIP – 12.6 Mo GUI 1.31 ZIP 12.6 Mo 06-JUN-18
[15-APR-18] 4K VERTEX GUI 1.31 – FW 1.30.1.30 – ZIP – 12.6 Mo GUI 1.31 ZIP 12.6 Mo 15-APR-18
[11-APR-18] 4K VERTEX GUI 1.30 – FW 1.30.1.30 – ZIP – 12.6 Mo GUI 1.30 ZIP 12.6 Mo 11-APR-18
[19-FEB-18] 4K VERTEX GUI 1.14 – FW 1.14.1.20 – ZIP – 12.5 Mo GUI 1.14 ZIP 12.5 Mo 19-FEB-18
[10-JAN-18] 4K VERTEX GUI 1.13 – FW 1.13.1.18 – ZIP – 12.3 Mo GUI 1.13 ZIP 12.3 Mo 10-JAN-18
[14-DEC-17] 4K VERTEX GUI 1.08 – FW 1.12.1.17 – ZIP – 12.3 Mo GUI 1.08 ZIP 12.3 Mo 14-DEC-17
[28-NOV-17] 4K VERTEX GUI 1.08 – FW 1.10.1.15 – ZIP – 12.3 Mo GUI 1.08 ZIP 12.3 Mo 28-NOV-17
User Manual Version Format Size Date
[26-APR-18] HDfury Vertex User Manual Rev.1.30 – PDF – 3.39 Mo Rev.1.30 PDF 3.39 Mo 26-APR-18
EDID Collection Format Size Date
[23-MAY-19] HDfury EDID Collection – ZIP – 108 Ko ZIP 108 Ko 23-MAY-19
API/DLL Package Format Size Date
[26-FEB-18] HDfury Vertex API/DLL package – ZIP – 275 Ko ZIP 275 Ko 26-FEB-18
4K Total Control APK + XML File for Custom APP menu Version Format Size
[16-APR-19] Vertex Test APK for Android 9 – ZIP – 2.9 Mo TEST APK ZIP 2.9 Mo
[13-JUN-18] Vertex APK 1.1.0 + Custom XML for APP menu – ZIP – 2.9 Mo APK 1.1.0 ZIP 2.9 Mo
[16-MAY-18] Vertex APK 1.0.4 + Custom XML for APP menu – ZIP – 2.9 Mo APK 1.0.4 ZIP 2.9 Mo
[12-NOV-17] Vertex APK 1.0.0 + Custom XML for APP menu – ZIP – 2.9 Mo APK 1.0.0 ZIP 2.9 Mo
Icons viewer for creating Custom APP menu Format Size
APP Icons Viewer for Custom menu – ZIP – 644 Ko ZIP 644 Ko
