Introducing Luma.
The Swiss army knife of the AV world.

This is a product borne out of passion. Swiss army knife, because the product has continued, and will continue, to evolve with new features and capabilities.

[2007-2027] HDfury is trusted by 200K+ Businesses & End-Users Since 20 Years !

Tone Mapping

—

Aspect Detection

—

Scaling

—

Shifting

—

Projector Stacking

—

Subtitle Management

—

3D LUT

—

Keystone Correction

—

Chromatic Aberration Correction

—

Chroma Upsampling

—

Home Theater Automation

—

Deinterlacing

—

Frame Rate Conversion

—

Test Patterns

—

A new Milestone for Modern & Legacy AV Setups

More than a device, a new standard for AV Hobbyists and Professionals

Image link
LUMA HDMI™ Inputs x2

HDMI™ 2.1 up to 4K @ 120 fps over FRL — 12-bit 4:2:2, 10-bit 4:4:4 and RGB; 1440p up to 144 Hz. Compatible with DSC and VRR.

HDMI™ 2.0b up to 4K @ 60 fps.

SDR, HDR10, HDR10+, HLG and Dolby Vision in BT.709, BT.2020 and P3; 8/10/12-bit; 4:2:0, 4:2:2, 4:4:4 and RGB; interlaced and SD sources too.

Image link
Real Time AV Processor

Ultimate signal routing meets limitless customization. Split, switch, or matrix your feeds while independently scaling, converting, tone-mapping, and adjusting frame rates on every output at will. Plus, engage low-latency mode for ultra-responsive gaming at 4K120.

Built for every source, every display!

AV Dreambox
Image link
LUMA HDMI™ Outputs x2

Up to 4K @ 120 fps over FRL (HDMI™ 2.1) at 10 or 12 bits — RGB, 4:4:4 or 4:2:2.

UHD or DCI 4K, 1440p or 1080p. HDR, SDR and Dolby Vision — BT.709, BT.2020 or P3, configurable.

Two outputs, each set to video, audio, both or off — projector and TV, or projector and audio system. Luma works out the common format and explains it in plain words.

Discover the Luma features with a guided tour on YouTube !

Enjoy Cinema, without limits.
Luma presentation video made by Johnny Wilkinson, founder of the Luma project.

What Luma does for Picture

Unmatched versatility meets cinema-grade performance, taking your home theater to the next level for movie lovers and pros alike.
[YouTube Demo Videos for each feature are coming soon.]

Tone Mapping
HDR10, HLG and Dolby Vision mapped to your display's measured peak, decided frame by frame. Our own algorithm with libplacebo alternative, selectable.
Up to 4K60
Dolby Vision
Full Dolby Vision support; low-latency Dolby Vision decoded and sent as Dolby Vision, HDR10 or SDR.
Exclusive 4K60
Aspect Detection
Finds the black bars on every frame; fit, stretch, crop and shift follow rules you set per profile.
Up to 4K60
Stretching
Anamorphic at any ratio, linear, NLS (non-linear), set separately for width and height.
Up to 4K60
Shifting
by pixel or percentage; any anchor (top/bottom × left/right) and combinations.
Up to 4K60
Subtitle Management
A subtitle the screen would cut off is moved into the picture at its original size.
Beta 4K60
Projector Stacking
The second projector is aligned with your phone's camera and the light is split between the two. We recommend one Luma per projector.
Exclusive 4K60
3D LUT
2³ to 65³ (.cube, .csp, .3dl) and 1D LUTs, up to six in a chain, kept per display.
Up to 4K60
Calibration
Calibrate with your own meter from the Luma Calibration program: Luma fits the 3D LUT and verifies it.
Beta
Keystone Correction
8-point with curved edges, sub-pixel precision.
Up to 4K60
Chromatic Aberration Correction
Up to 33×33 vertices, sub-pixel adjustments, auto-derived from your phone camera.
Up to 4K60
Chroma Upsampling
4:2:0 and 4:2:2 sources sent as 4:4:4 as long as the display allows it without loss of bit depth.
Up to 4K60
Deinterlacing
With cadence detection, for 1080i and SD sources.
Exclusive
Frame Rate Conversion
The output runs at your display's best rate, locked to the source. Optional frame doubling for 50/60 fps sources, quintupling for 24 fps or dividing 100/120 fps to 50/60 fps
Up to 4K120
Test Patterns
In every colour space and format Luma can output, including Dolby Vision.
Up to 4K120
Upscaling and Downscaling
One format to one output and another to the other, at the same time: 4K to the projector and 1080p to the TV, from one source.
Up to 4K120

A cleaner, richer quality

Tone-Mapping to your display's measured peak. Richer color, greater depth, true to the authoring, the way it was meant to be.

HDR10, HLG and Dolby Vision
Frame by Frame
Luma or Libplacebo Algorithm
Image link
LUMA
Image link
HDR, Not Tone-Mapped
HDR not tone-mapped
HDR straight from the Apple TV, a plain clip at 200 nits, no tone mapping
LUMA tone-mapping
stock libplacebo 7.349, the frame's own measured peak, 100-nit target

What Luma does for Sound

Audio Passthrough
Byte for byte: LPCM to 7.1, DTS-HDMA, DTS-X, Dolby Digital, Dolby Digital Plus and TrueHD with Atmos. Lip sync adjustment.
Exclusive
5.1 to 7.1 Upscaling
Optional, for 7.1 systems.
New
Headphones
S/PDIF, 3.5 mm jack and Bluetooth, with automatic downsampling of PCM (DTS-HDMA, DTS-X and Dolby formats are not decoded).
New

What Luma does Around the Room

Home Theater Automation
When the film starts, pauses, changes aspect ratio or the input locks, Luma drives your lights, KNX and AV gear through plugins; profiles switch per source and display.
Exclusive
Silent by Design
Experience pure, uninterrupted cinema with zero-decibel, fanless hardware that keeps the focus entirely on your soundtrack—never on distracting background hums.
Exclusive
Recording and Playback
Record the HDMI™ signal to USB or NVMe as 8-bit HEVC, up to 4K at 60 fps or 1440p at 120 fps, and play it back. Copy-protected content is not recorded.
Up to 4K60
YT Video Coming Soon...
How it's controlled

AV super powers at your fingertips

Mobile App — iOS and Android.
Web Interface at luma.local — Wi-Fi or Ethernet.
On-screen menu from your TV remote (CEC), and a front-panel display.
API — open and documented.
Signed Firmware updates, with rollback.

Image link
Image link

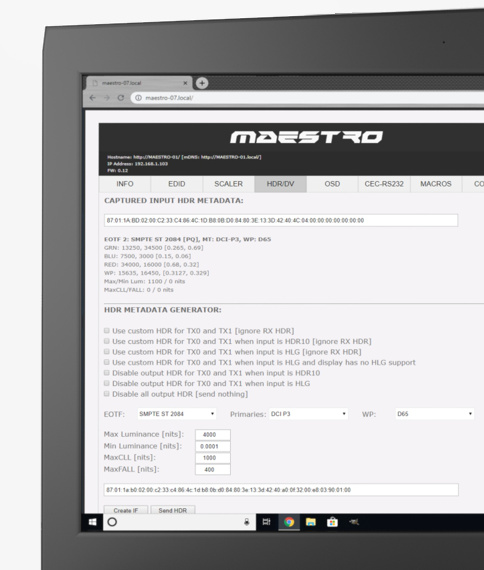

Preview the Web interface at luma.local

Discover and Play with the Luma Web Interface in Real-Time !
Connect to a static demo of the Web Interface in order to evaluate all the options available on Luma.

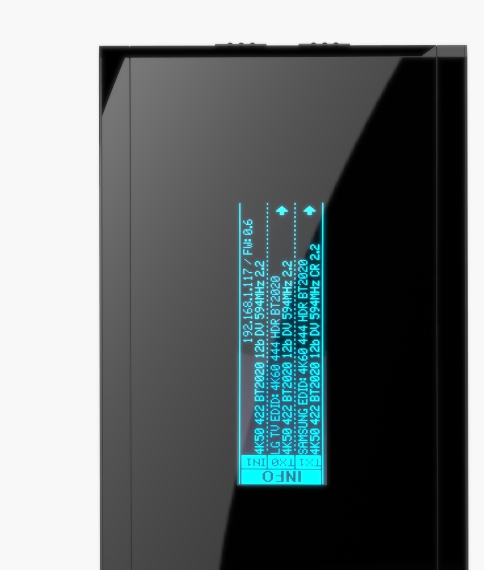

Info Screen Always at First Sight !

Information about Signal and applied AV Processor options
Equalizer with 1 bar per each decoded Atmos speaker
Live Stream Preview
Boot Logo, Enable/Disable Screen at will
