4K Maestro 18Gbps TX/RX

$419.00

12-SEP-2019: Maestro won CEDIA 2019 Best Product AWARD !
If no network available, you can remotely control Maestro by using GO2 (RS232 Dongle with Android/iOS APP)

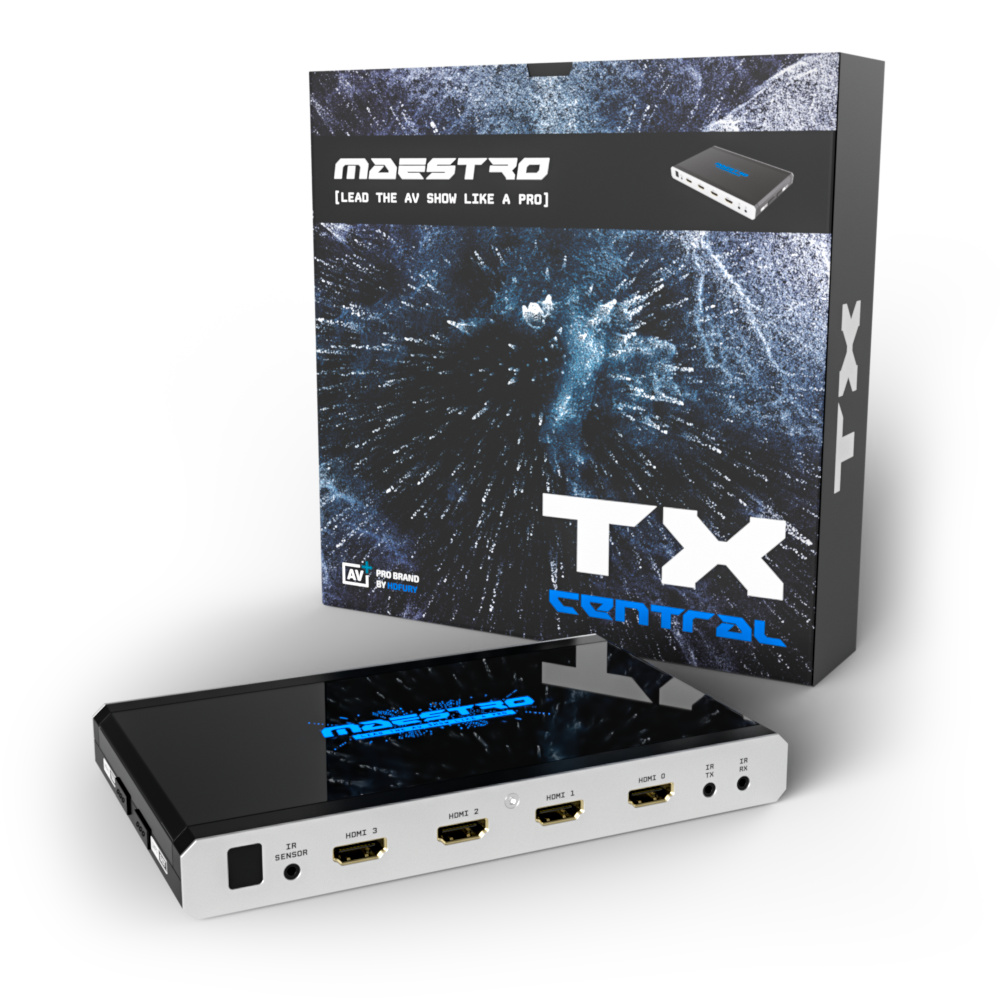

Maestro TX-Central Kit includes:

Maestro TX Central unit
Choice of power supply
IR TX cable (9ft)
IR RX cable (9ft)
Jack Optical cable (4.5ft)

Maestro RX Kit includes:

Maestro RX unit
IR TX cable (9ft)
IR RX cable (9ft)
Jack > RS232 DB9 cable (1ft)
Jack Optical cable (4.5ft)

State of the art solution for long distance 4K HDR 18Gbps/600MHz transmission via Ethernet cable (HDBaseT)
Support any video and/or audio signal in existence today including LLDV, HLG, HDR10+, DTS:X, ATMOS and more…
Maestro allows any HDMI source (Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays and any sources Full HDMI audio to be played on ANY AVR.
World First: Maestro is also capable of extracting full audio from any TV ARC or eARC (HDMI2.1) up to Atmos High Bit Rate over True HD and forward it via 720p/1080p HDMI to ANY capable AVR input!

Clear

Product Description

Information

Maestro win Cedia Expo 2019 Best Product Award
After having released the world first and features rich 600MHz splitter in 2015 with Integral and what stands today as the world best and award winning pocket sized splitter/scaler design with Vertex in 2017.
We are proud to announce the availability of Maestro, another masterpiece of work from our dev team, build to disrupt and revolutionize the HDbaseT segment of the AV World.
[UPDATE 12-SEP-19] Maestro just won CEDIA 2019 Best Product Award!
4K UHD Maestro Boot4K HDR 18Gbps/600MHz transmission via Ethernet cable (HDBaseT) have never been so powerful.4K UHD Maestro OLED

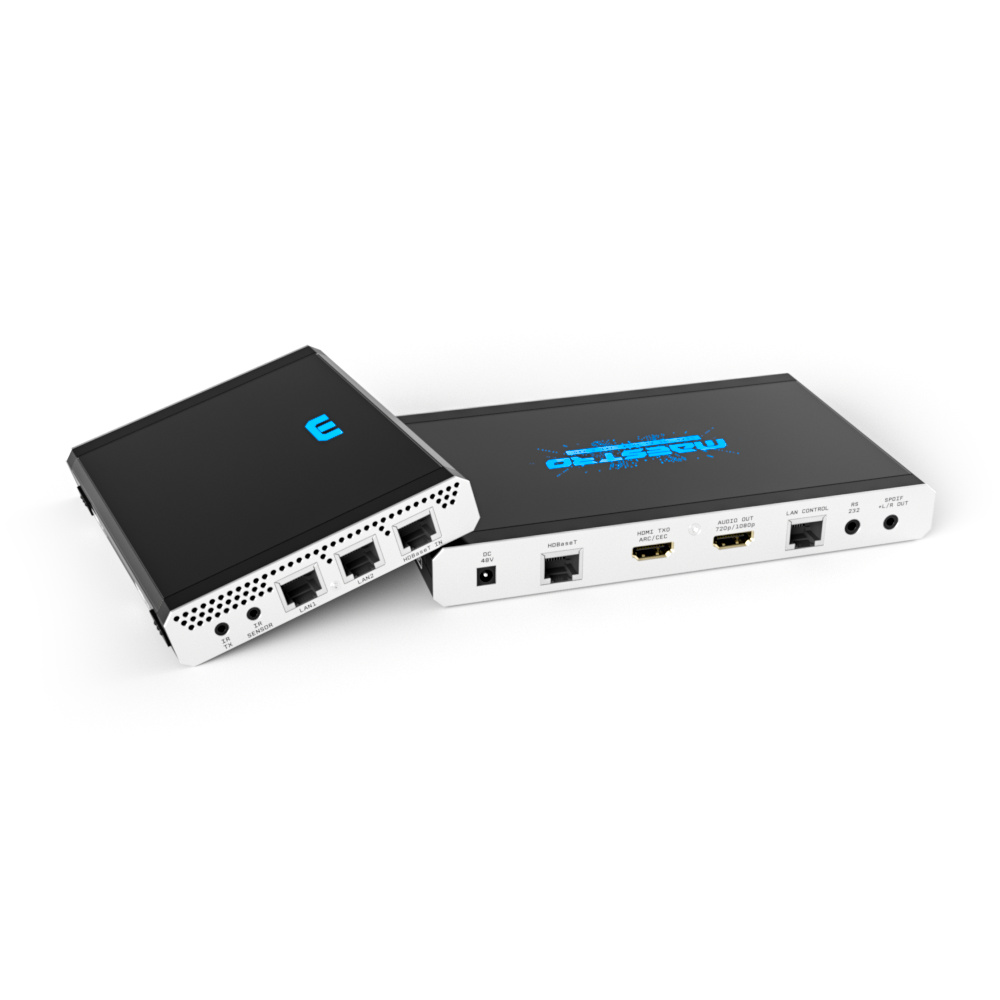

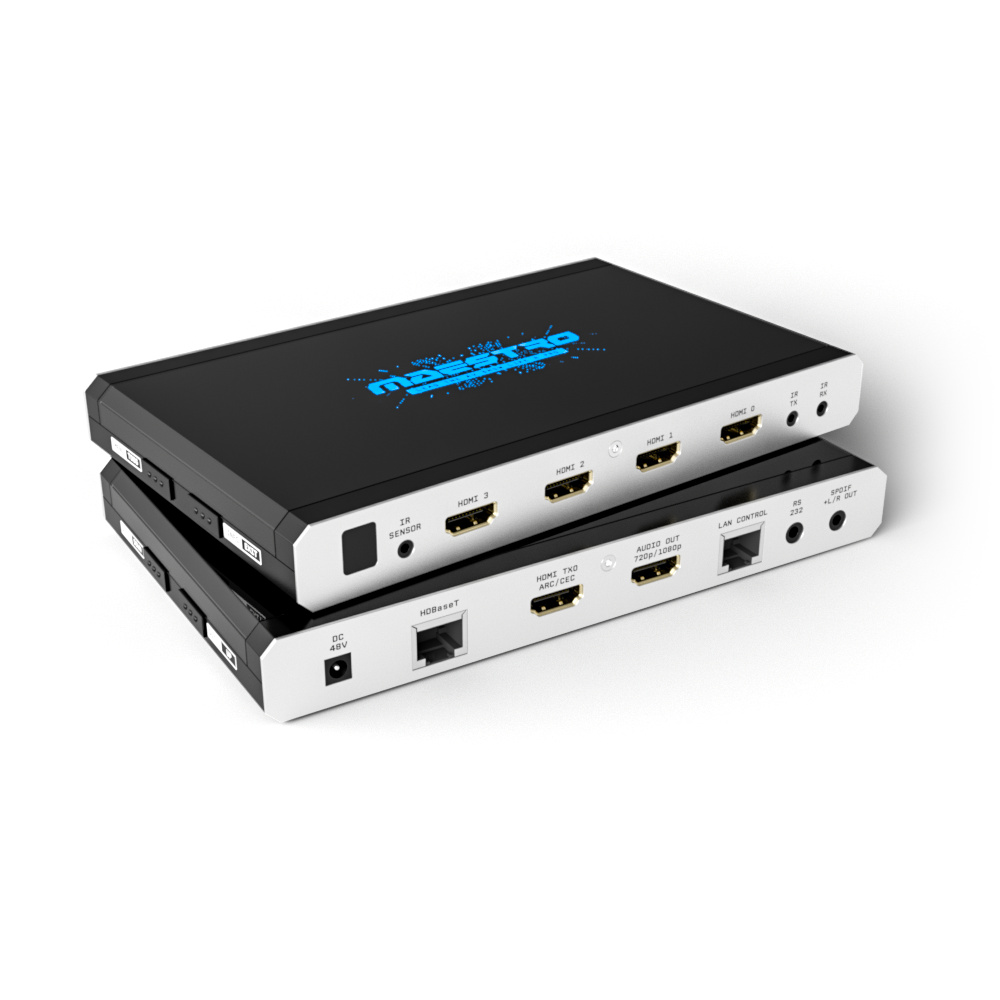

Hardware-wise, you have the Maestro TX (Central) featuring 4 HDMI inputs, 1 HDMI video output with scaling option and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, HDbaseT output, RS232, L/R stereo or Optical 5.1 output, IR TX, IR RX, IR sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform change in the device system menu.

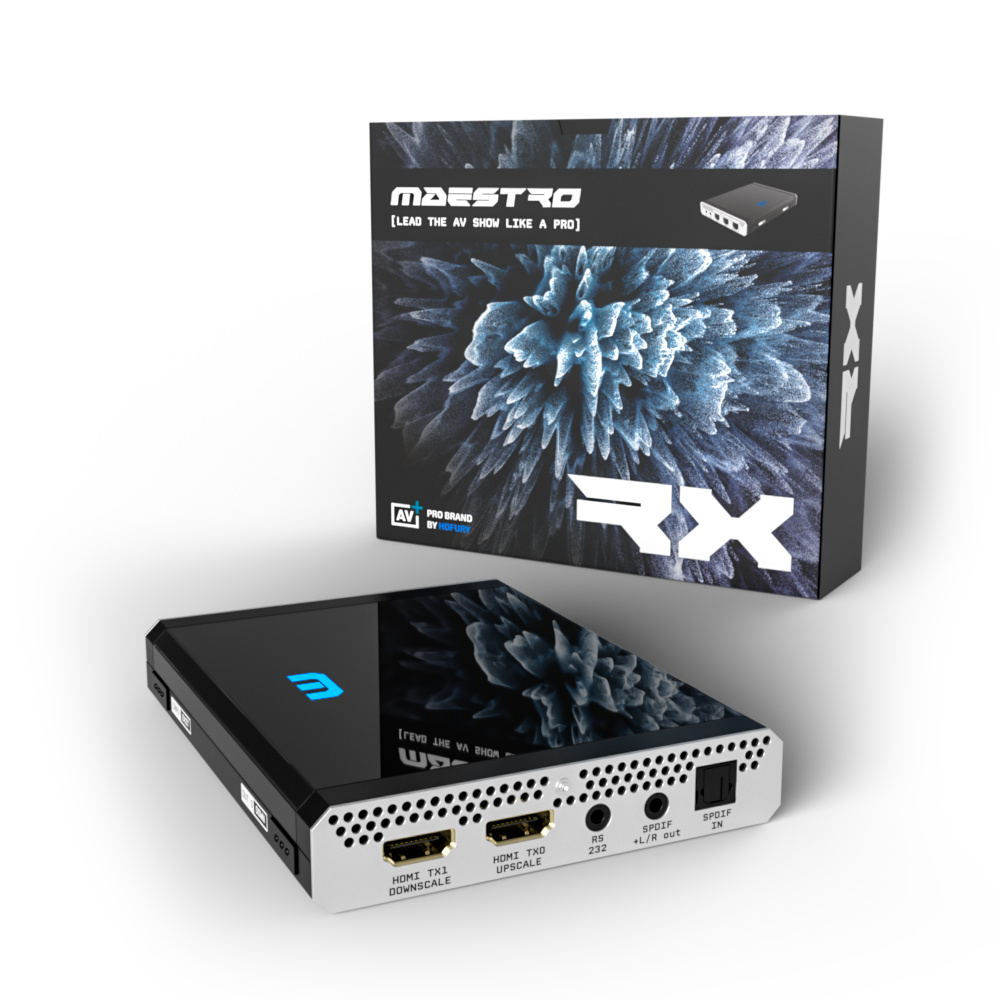

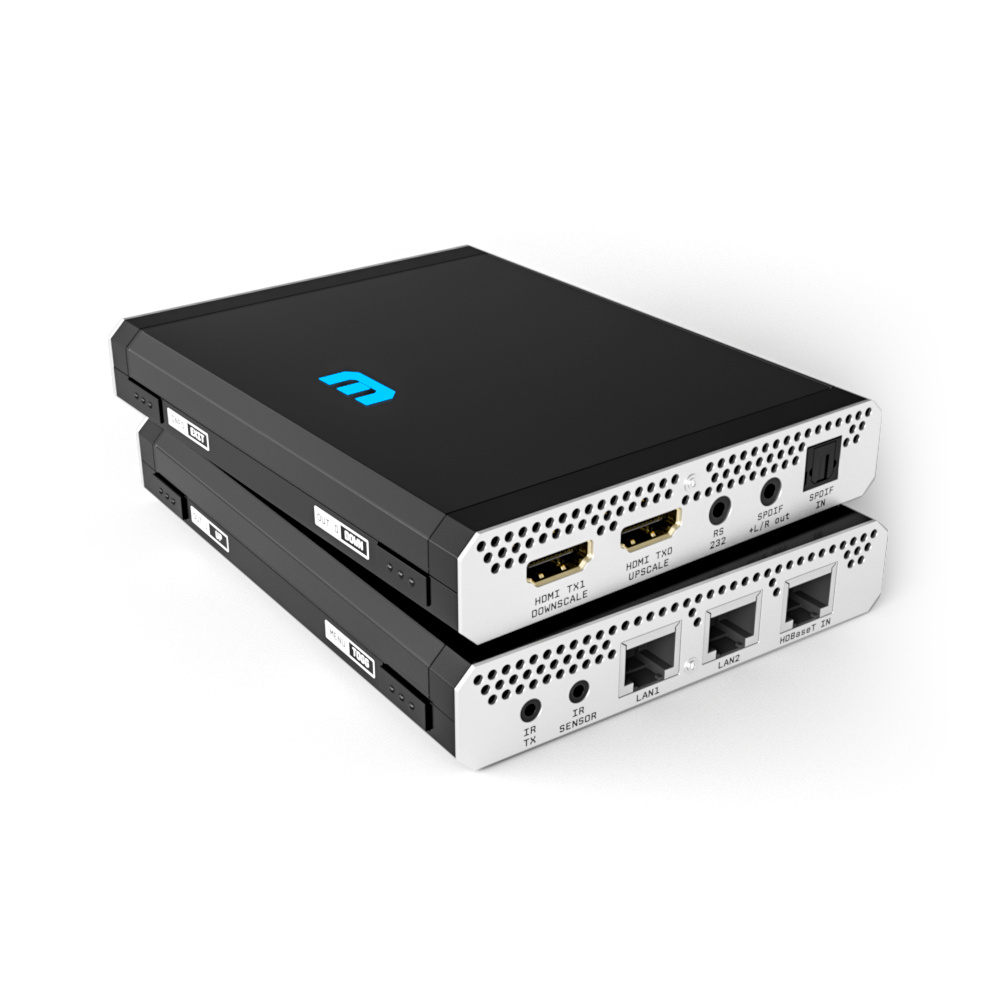

On the other end, the Maestro RX device self-powered by the TX-Central is featuring HDbaseT input, 2 LAN port to share Internet connection with game console, TV or media player, 2 HDMI outputs with scaling capabilities, RS232, L/R stereo or Optical 5.1 output, SPDIF input, IR sensor, IR TX, OLED display and 4 buttons on the side to enter/exit system menu and perform changes in settings.
All inputs are capable of 4K HDR/HLG/DV/HDR10+ up to 18Gbps for video and support any sound format in existence today, all video outputs are capable of outputting 18Gbps and all sound formats as well whether they are on the TX-Central or the RX one.
Both units are always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.

4K UHD Maestro OLED

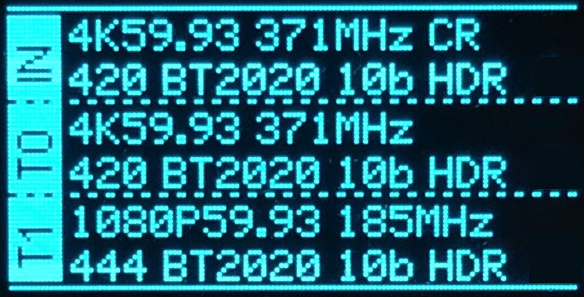

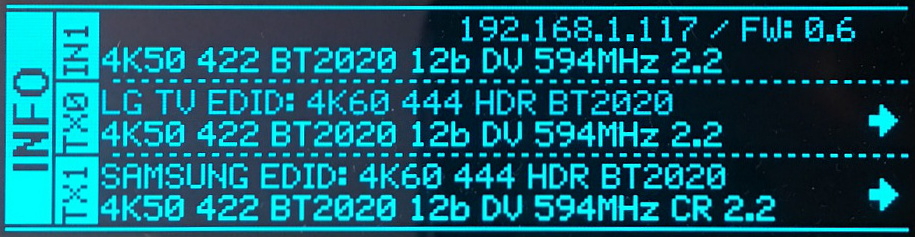

Both Maestro TX Central and RX Unit are providing real time signal info on their respective OLED screens.
OLED are also used to display system menu and allow navigation via push buttons on each unit.

Software-wise, Maestro is the first device to provide you full control via the embedded and brand new HDfury webserver ! The need of a dedicated computer with special driver to run configuration software or update is now a thing of the past !
You can use any web browser based device such as any computer or smartphone to access, control and update Maestro TX Central and Maestro RX (each one have its own webserver), the process is as easy as visiting a web page.
We went further than anything we ever made and full filled Maestro with revisited and improved HDR management feature. We also added some new features never seen before such as TMDS switching for all inputs which allow to autoswitch sources such as ATV4K, X1X or Shield that no other switch on the market are able to autoswitch.

[16-JAN-2019] World First eARC HDMI2.1 breakthrough: Maestro TX now support ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Maestro TX HDMI audio output (ARC-Key feature) !

All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling and signal operations such as Chroma/Color depth/Color space, PJ&Display macro, Infoframes modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.
All setup informations are visible at first sight via OLED, On Screen Display or Webserver.

Maestro is the HDbaseT smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centers, UHDTV retail, show sites, data centers, schools, conference or home cinema and much more.

You can purchase and use the Maestro Central alone if you need 4 inputs + 4K HDR/HLG/HDR10+ or DV passthru and Full HDMI audio extraction to feed older AVR at 720p or 1080p while still enjoying unrestricted 4K on your main display.

Technical specs

HDMI revision: HDMI 2.0b (Level A) 600Mcsc – 18Gbps
TX Support: 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX
RX Support: 600MHz/18Gbps HDR, HDR10+, HLG & LLDV – 300MHz/10.2Gbps DV, ARC
Max Resolution: 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b
TOTAL I/O: 4 HDMI In, 4 HDMI Out, 5 RJ45, 5 IR, 2 RS232, SPDIF In, 2 Analog Jack & Optical Out.
TX I/O: 4 HDMI In, 2 HDMI Out, 2 RJ45, 3 IR (Sensor, TX, RX), RS232, Analog Jack & Optical Out.
RX I/O: 2 HDMI Out, 3 RJ45, 2 IR (Sensor, TX), RS232, SPDIF In, Analog Jack & Optical Out.
Upscale port: FHD 1080p & 2K to UHD 2160p & 4K/DCI on TX/RX
Downscale port: UHD 2160p & 4K/DCI to FHD 1080p & 2K on RX
Full Audio port: Full HDMI Audio extraction via 720p/1080p self generated stream to feed any AVR on TX
TMDS Switching: Autoswitch support for ATV4K, X1X and others sources continuously sending +5V
Signal Conversion: Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP
HDCP Conversion: Any HDCP to any HDCP with CST1 support
Operating Modes: 18Gbps Matrix, Scaler, Splitter & Switcher with CEC, eARC, ARC and EDID management
Special Modes: CEC Command, HTPC, Disable or replace HDR/HLG, HDMI Doctor, RS232 Macro.
EDID Modes: 10 EDID Flags, 5 EDID Algo, 100 EDID Banks (10 custom)
Infoframe Modes: Capture, edit, create, block or replace HDR/HLG metadata, AVI & VSIF.
Read SPD, Audio, HDMI Vendor, HDMI Forum
Control Modes: New HDfury Webserver, IR, RS232 for Linux/MAC/Win or push buttons
HDbaseT Length: 150M (500ft) on up to 1080P 8b, 100M (328ft) on 1080P 12b (Cat6a), Up to 70m (230ft) on 4K60 4:4:4 HDR (Cat6a)
LAN Extender: 2 Extra RJ45 ports on RX to extend your LAN to your TVs, sources, game consoles..
On Screen Display: Editable with custom text and mask. (cover TV channel logo)
TX Oled: 3.12″ Diagonal, 256×64, 16 blue colors
RX Oled: 1″ Diagonal, 128×64, 2 colors
TX Dimension: 4.5″L x 7.3″W x 0.9″H – in CM: 11.5 x 18.5 x 2.4
RX Dimension: 4.3″L x 5.5″W x 0.9″H – in CM: 11 x 14 x 2.4
TX Weight: 520g – 1.15 LBS
RX Weight: 410g – 0.9 LBS
Input Lag: <1ms (nanoseconds count)
Other info: 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1)

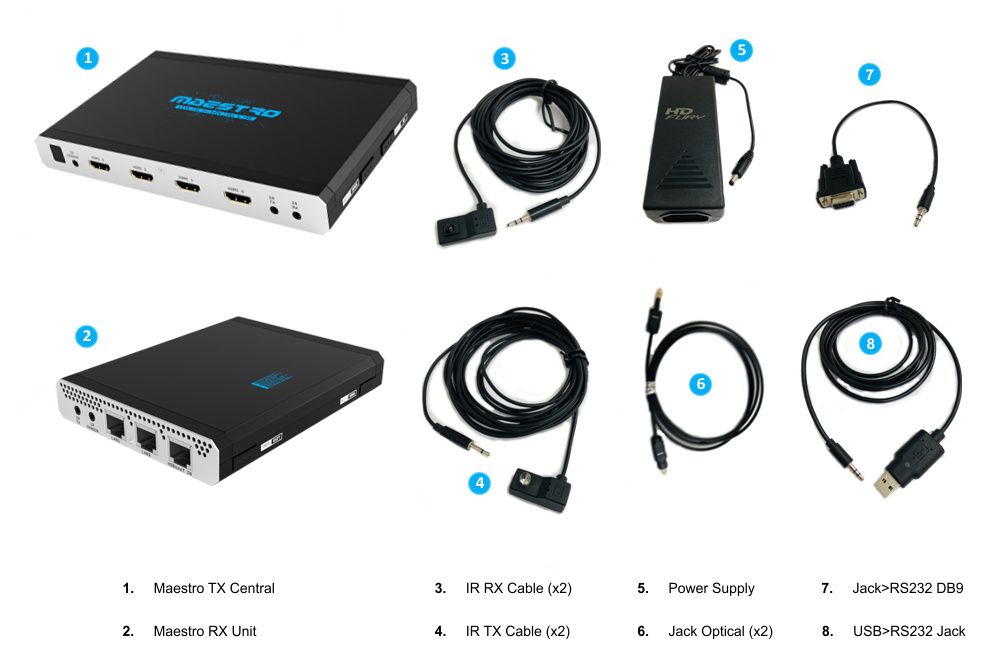

Elements

4K UHD Maestro Elements

FEATURES

Information

All setups suitability

Maestro supports any HDMI, HDCP and HDR sources or sink and operate in-between to ensure all your equipment work at their best capabilities.

AutoSetup Wizard

Think it’s complicated? Maestro can suit any user needs with ease. Simply connect sources and sink devices in the right port and add power, Maestro does the rest.

Unlock HDCP 2.2

Get all advantages from HDCP2.2 sources and keep or convert them per channel to suit any HDMI or HDCP sink.

Info is Everywhere

Whether it is on OLED, OSD or the brand new HDfury Web server embedded, your setup info is always available at first sight.

iOS & Android Control

Control Maestro using your tablet, smartphone or any web browser based device.

Custom configuration

Share your config with the community, display any text on OSD, set your start page, remove visually annoying or lamp consuming artifacts like TV channel logo and more.

Upscale Port

Upscaling from FHD to UHD up to 18Gbps is available to display your 1080p sources at 2160p on your native 4K display.

Downscale Port

Connect any FHD sink in any UHD setup, play 4K HDR on main stream, and feed your AVR or older display with a 1080p stream. For HDR to SDR, see here.

Digital Doctor

Any EDID related issues, HTPC issues or HDMI/HDCP handshake, compatibility or revision issues can be solved with Maestro.

18Gbps Splitter

1 input replicated to 2 outputs, each individual output can be used to upscale or downscale based on your setup needs.

600 Mcsc Matrix

Maestro can process two 4K HDR signals up to 18Gbps simultaneously and apply scaling individually per channel.

Lab & Studio Toolkit

Public API/DLL access and extensive control to extract, edit, inject or replace HDR metadata, AVI and VSIF Infoframe. Read SPD, Audio, Vendor Specific and more.

WEB SERVER

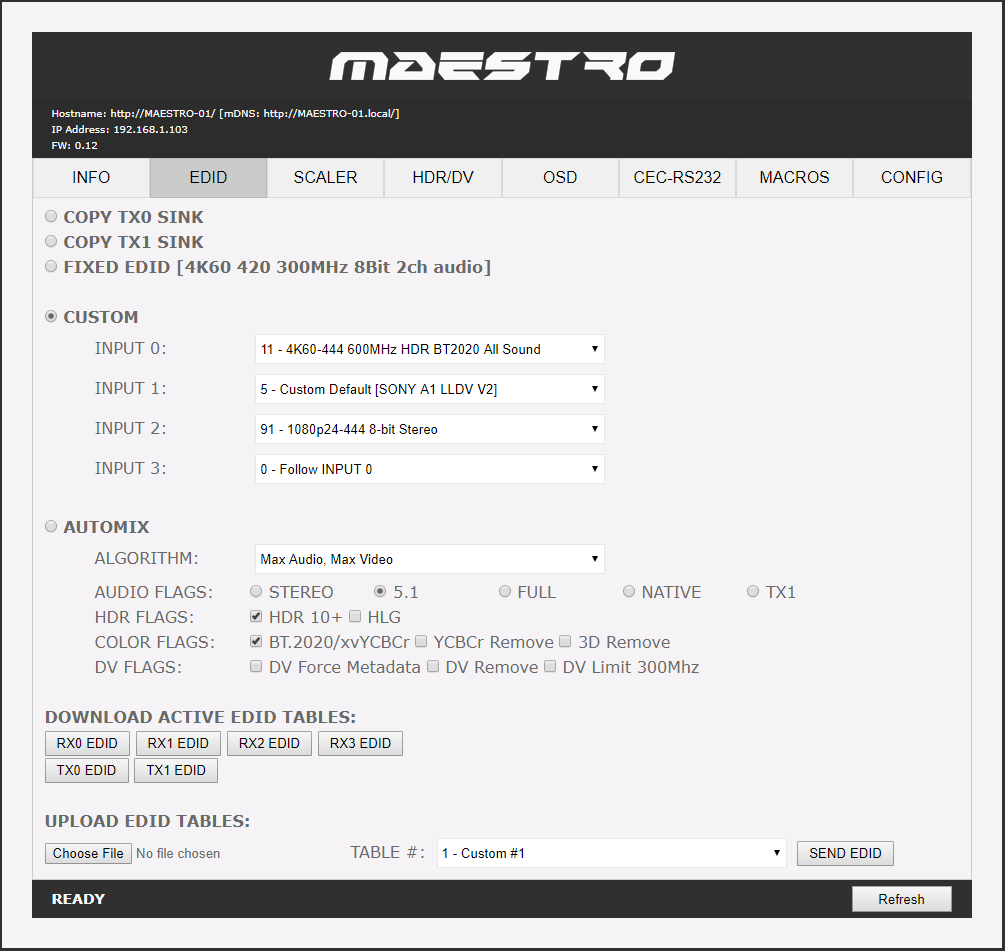

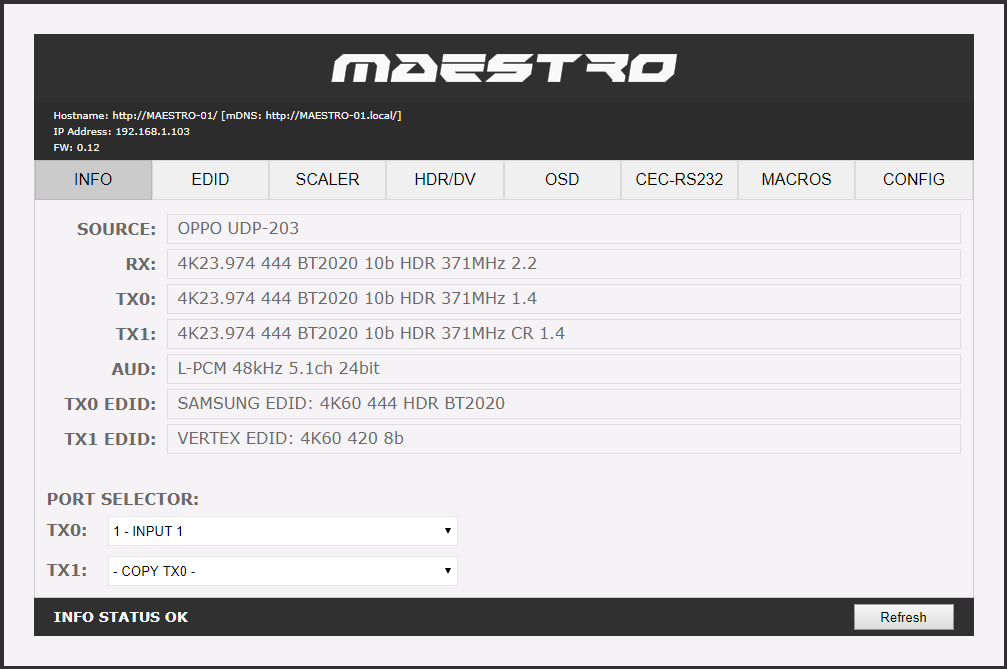

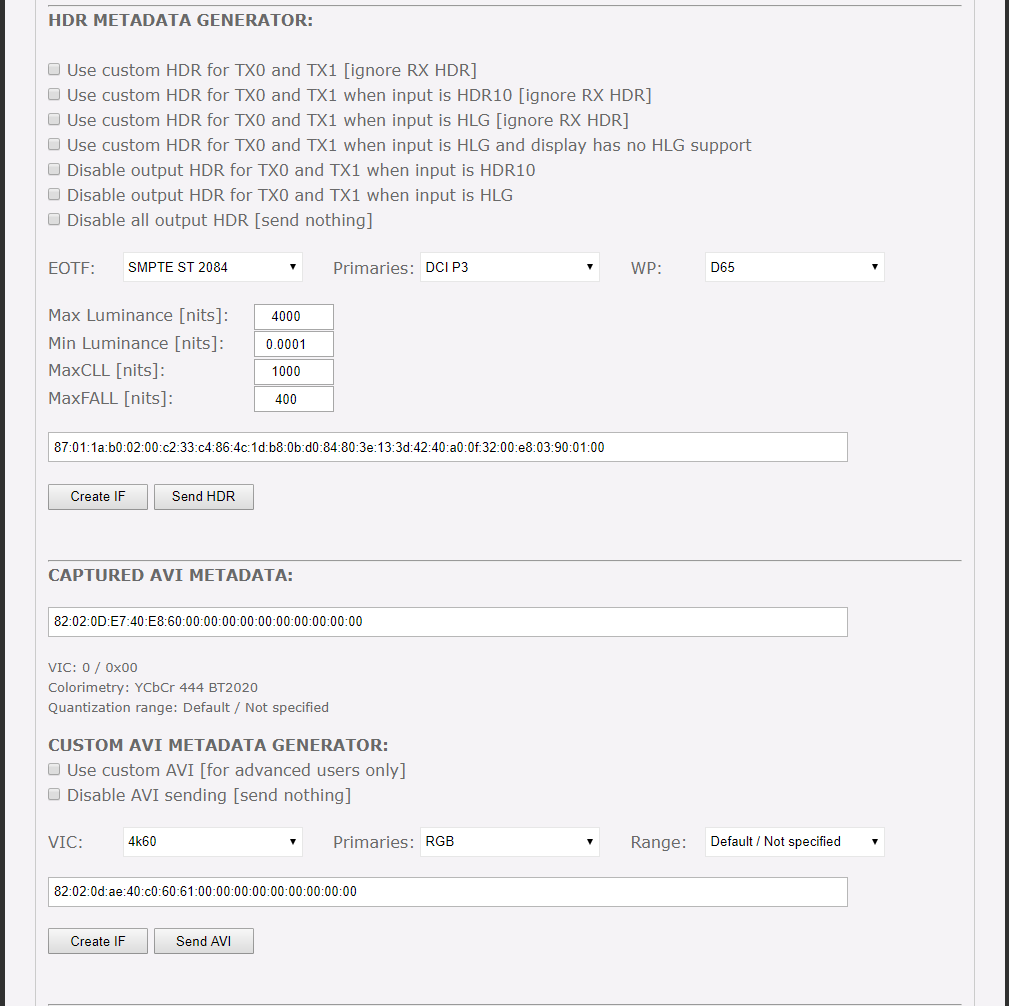

Below you can appreciate some page views of the embedded webserver in Maestro.

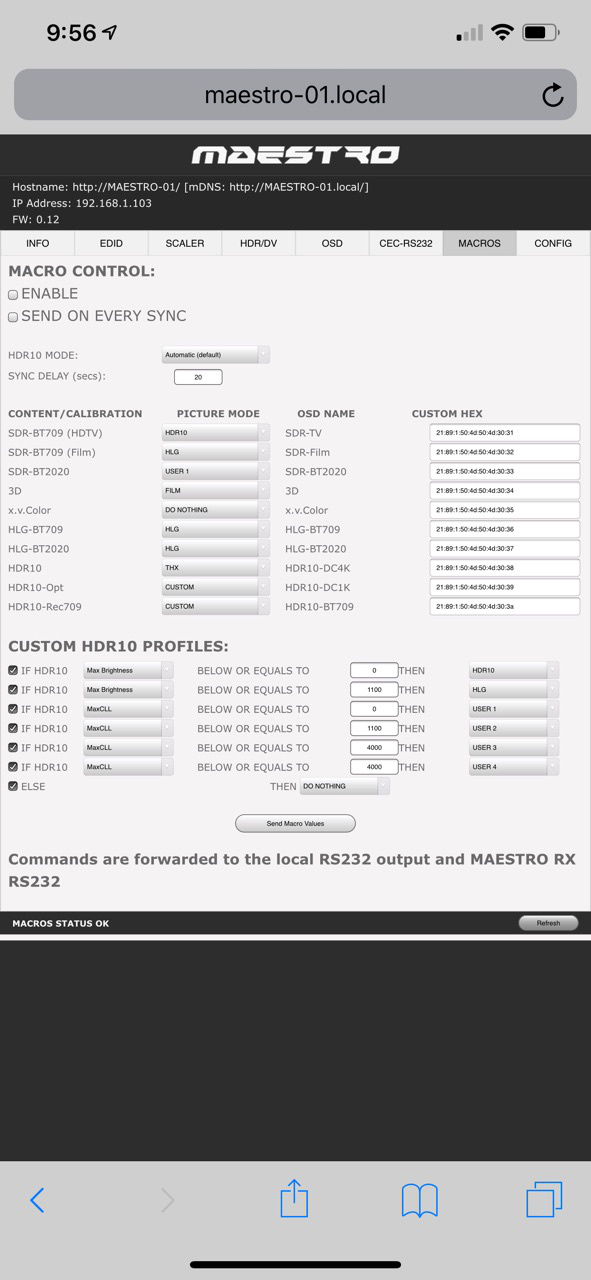

All pics were taken from Chrome browser except the last one showing how it looks like on iPhone.


DOWNLOAD

Firmware Update + IR codes list + RS232/IP commands Version Format Size Date
[03-NOV-20] 4K MAESTRO – TX FW 0.64 – RX FW 0.50 – ZIP – 750 Ko 0.64 ZIP 750 Ko 03-NOV-20
[16-OCT-20] 4K MAESTRO – TX FW 0.63 – RX FW 0.50 – ZIP – 750 Ko 0.63 ZIP 750 Ko 16-OCT-20
[07-AUG-20] 4K MAESTRO – TX FW 0.62 – RX FW 0.50 – ZIP – 750 Ko 0.62 ZIP 750 Ko 07-AUG-20
[16-JUN-20] 4K MAESTRO – TX FW 0.61 – RX FW 0.49 – ZIP – 750 Ko 0.61 ZIP 750 Ko 16-JUN-20
[05-MAY-20] 4K MAESTRO – TX FW 0.60 – RX FW 0.47 – ZIP – 750 Ko 0.60 ZIP 750 Ko 05-MAY-20
<[27-APR-20] 4K MAESTRO – TX FW 0.59 – RX FW 0.47 – ZIP – 750 Ko 0.59 ZIP 750 Ko 27-APR-20
[12-MAR-20] 4K MAESTRO – TX FW 0.58 – RX FW 0.47 – ZIP – 750 Ko 0.58 ZIP 750 Ko 12-MAR-20
[06-FEB-20] 4K MAESTRO – TX FW 0.57 – RX FW 0.46 – ZIP – 750 Ko 0.57 ZIP 750 Ko 06-FEB-20
[01-FEB-20] 4K MAESTRO – TX FW 0.56 – RX FW 0.45 – ZIP – 750 Ko 0.56 ZIP 750 Ko 01-FEB-20
[10-DEC-19] 4K MAESTRO – TX FW 0.55 – RX FW 0.44 – ZIP – 750 Ko 0.55 ZIP 750 Ko 10-DEC-19
[14-NOV-19] 4K MAESTRO – TX FW 0.54 – RX FW 0.44 – ZIP – 750 Ko 0.54 ZIP 750 Ko 14-NOV-19
[24-OCT-19] 4K MAESTRO – TX FW 0.53 – RX FW 0.43 – ZIP – 750 Ko 0.53 ZIP 750 Ko 24-OCT-19
[01-OCT-19] 4K MAESTRO – TX FW 0.52 – RX FW 0.42 – ZIP – 750 Ko 0.52 ZIP 750 Ko 01-OCT-19
[27-SEP-19] 4K MAESTRO – TX FW 0.51 – RX FW 0.42 – ZIP – 750 Ko 0.51 ZIP 750 Ko 27-SEP-19
[09-SEP-19] 4K MAESTRO – TX FW 0.49 – RX FW 0.41 – ZIP – 750 Ko 0.49 ZIP 750 Ko 09-SEP-19
[30-AUG-19] 4K MAESTRO – TX FW 0.48 – RX FW 0.40 – ZIP – 750 Ko 0.48 ZIP 750 Ko 30-AUG-19
[19-AUG-19] 4K MAESTRO – TX FW 0.46 – RX FW 0.40 – ZIP – 752 Ko 0.46 ZIP 752 Ko 19-AUG-19
[31-JUL-19] 4K MAESTRO – TX FW 0.45 – RX FW 0.40 – ZIP – 752 Ko 0.45 ZIP 752 Ko 31-JUL-19
[21-JUL-19] 4K MAESTRO – TX FW 0.43 – RX FW 0.40 – ZIP – 752 Ko 0.43 ZIP 752 Ko 21-JUL-19
[09-JUN-19] 4K MAESTRO – FW 0.41 – ZIP – 752 Ko 0.41 ZIP 752 Ko 09-JUN-19
[27-APR-19] 4K MAESTRO – FW 0.31 – ZIP – 752 Ko 0.31 ZIP 752 Ko 27-APR-19
[24-APR-19] 4K MAESTRO – FW 0.30 – ZIP – 752 Ko 0.30 ZIP 752 Ko 24-APR-19
[11-MAR-19] 4K MAESTRO – FW 0.27 – ZIP – 752 Ko 0.27 ZIP 752 Ko 11-MAR-19
[09-MAR-19] 4K MAESTRO – FW 0.26 – ZIP – 752 Ko 0.26 ZIP 752 Ko 09-MAR-19
[05-MAR-19] 4K MAESTRO – FW 0.24 – ZIP – 752 Ko 0.24 ZIP 752 Ko 03-MAR-19
User Manual Version Format Size Date
[30-AUG-19] HDfury Maestro User Manual Rev.1.0 – PDF – 4.63 Mo Rev.1.0 PDF 4.63 Mo 30-AUG-19
EDID Collection Format Size Date
[23-MAY-19] HDfury EDID Collection – ZIP – 108 Ko ZIP 108 Ko 23-MAY-19
