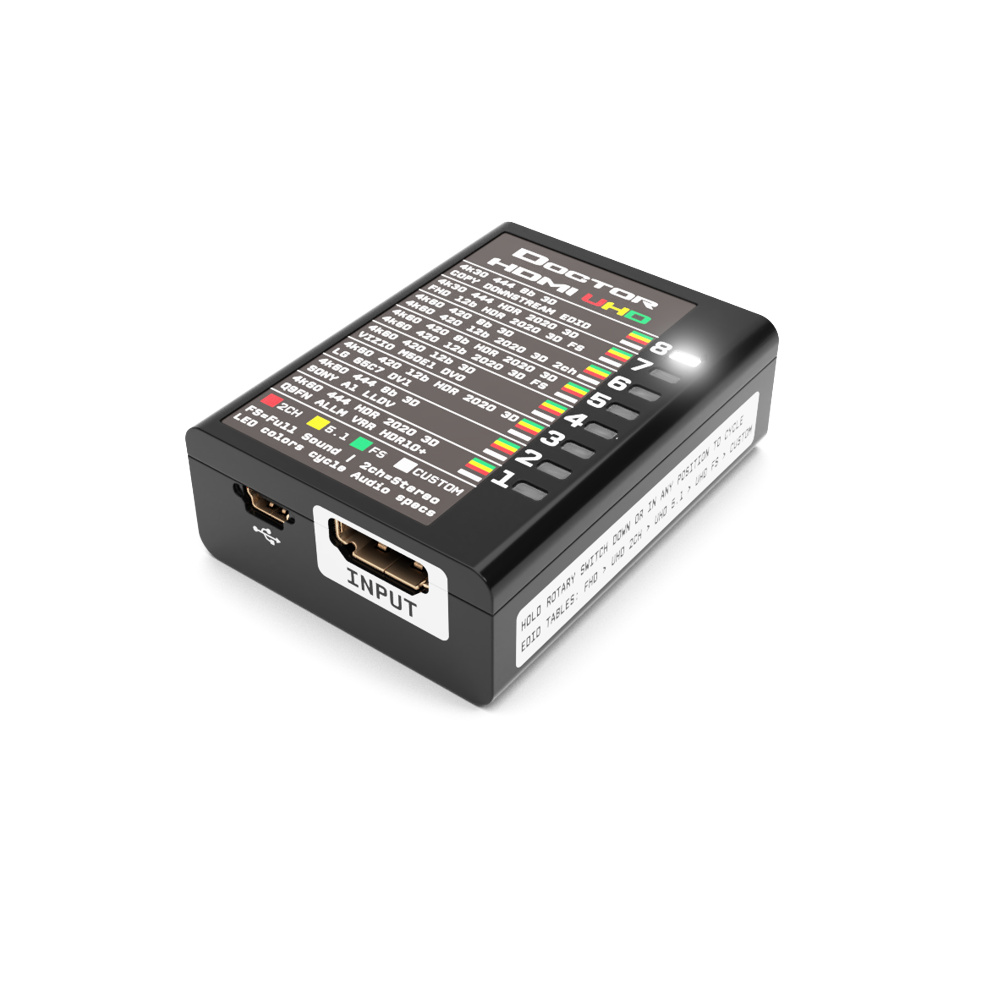

Dr HDMI 4K

$119.00

You can remotely control Dr.HDMI 4K by using GO2 (RS232 Dongle with Android/iOS APP)

This Kit includes:

Dr.HDMI 4K Processor
Choice of power supply
USB > mini USB cable

Clear
SKU: DRHDMI4K Categories: , ,

Product Description

Dr. HDMI 4K Features

Summary

Dr HDMI 4K can help to solve most HDMI issues such as handshaking issue, compatibility issue and/or any EDID related issue. It help to keep a source always ON or tricked into a defined state which is especially useful for system integrators.
Dr HDMI 4K can also boost signal integrity and extend +5v signal through a HDMI/DVI-D chain. For example, it can work hands in hands with HDfury products to extend compatibility range. It can also be used to limit the source output resolution.
Dr HDMI 4K acts as an EDID manager, HDMI/DVI-D emulator and repeater that comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank, HTPC mode and more !

Highlight Features

  • Unique 18Gbps/600MHz support with 0ms latency
  • Solve Most HDMI issues !
  • Fix HDMI handshaking issue
  • EDID Manager and Detective feature
  • Easy EDID table manipulation via USB port
  • HDMI/DVI-D emulator and repeater
  • Maintain 4K, 3840×2160, 2160p video without losing sync.
  • 40 Predefined Banks (4K HDR, 4K DV, 4K HLG, 4K HDR10+, FullHD 3D, FullHD, 1080i, 720p, etc..)
  • 7 User programmable EDID Banks
  • Support: HDR, HDR10+, HLG, DV & LLDV, ALLM, IMAX
  • All DV modes supported including DV mode 0, mode 1, mode 2 and LLDV
  • Sink EDID sniffing feature
  • Extend signal integrity up to 50 meters !
  • HTPC mode to avoid detection of the connected sink status
  • +5V Injector feature to power active cable
  • RS232 Control for remote administration and integrators setup
  • HDCP compliant

Windows GUI

(For convenience only, not mandatory for operating the unit)

Technical Specs

Dr. HDMI 4K Technical Specs

    HDMI 2.0b compliance
    18Gbps/600MHz support with 0ms latency !
    40 EDID banks (8 FHD, 24 UHD, 7 user programmable, 1 copy from Sink device)
    Reset HPD-event on the fly !
    Up to 50 meters cable loss compensation
    Keep source’s HDMI/DVI-D output active
    USB upgradable and flashable from computer
    User programmable EDID Banks
    Sink EDID sniffing feature
    Extand signal integrity up to 50 meters !
    HTPC mode (avoid Windows detection of output device status)
    Any resolution including HDMI standards
    Video Bandwidth : 18 Gbps
    Video support: Single-link 600MHz
    Audio support: Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc..
    Input cable equalization
    +5V HDMI Power injector
    Support extended EDID CEA861, 256 bytes
    HDCP Pass-Through
    Lip Sync Pass-Through
    CEC Protocol Pass-Through
    Power : Universal USB power adaptor
    Compliance: HDCP/FCC/CE
    Warranty : 1 year (extendable)
    Dimension : 60mm W x 40mm D x 20mm H
    Net weight : 50 gramms
    Input/Output connector: HDMI female
    USB: Mini USB-B female connector

Getting Started

Getting Started with Dr. HDMI 4K

Instructions and overview for Dr. HDMI 4K

Doctor HDMI 4K will solve most HDCP/HDMI issues by just being connected between source and display. Once connected it can be set on the fly to perform specific EDID and Hot plug event.
There are a total of forty EDID banks (40) inside the unit. When you press up or down on the rotary button you can quickly move between any of them to select the desired one. Once you stop for a second or so, the system actually activates the selected EDID and starts the HPD (hot-plug) event. This is the event where Dr.HDMI 4K will inform the source device that EDID has changed so the source must reconfigure it’s own internal settings. This takes about 2 seconds as per standards. During this time you will not be able to change the EDID. After HPD event concludes you are free to change edid again if wanted.
If you press the copy sink button, the display’s EDID is copied and placed into the EDID bank number 8. Once it is done, HPD event is also created and completes in about 2 seconds.
EDID banks are separated as follows:

  • FHD side: EDID 1-8 are presets factory configured and cannot be changed by user. However, They can be updated with a firmware update.
  • UHD side: EDID 1-8 are presets factory configured and cannot be changed by user, each of them is available with 3 possible audio format support (Stereo/Red, 5.1/Yellow or Full Audio/Green). They can be updated with a firmware update.
  • UHD side: Custom EDID 1-7 are user configurable by the PC software.
  • UHD side: EDID 8 is the reserved one for downloading from the display.

This device also has internal logic to support HDCP streams by sniffing all DDC packets and filtering the EDID requests but passing all HDCP handshakes.
The PC software can be used to edit any of the parameters on the fly or it can be used to load/save any customer EDID.

List of the 40 EDID Banks available

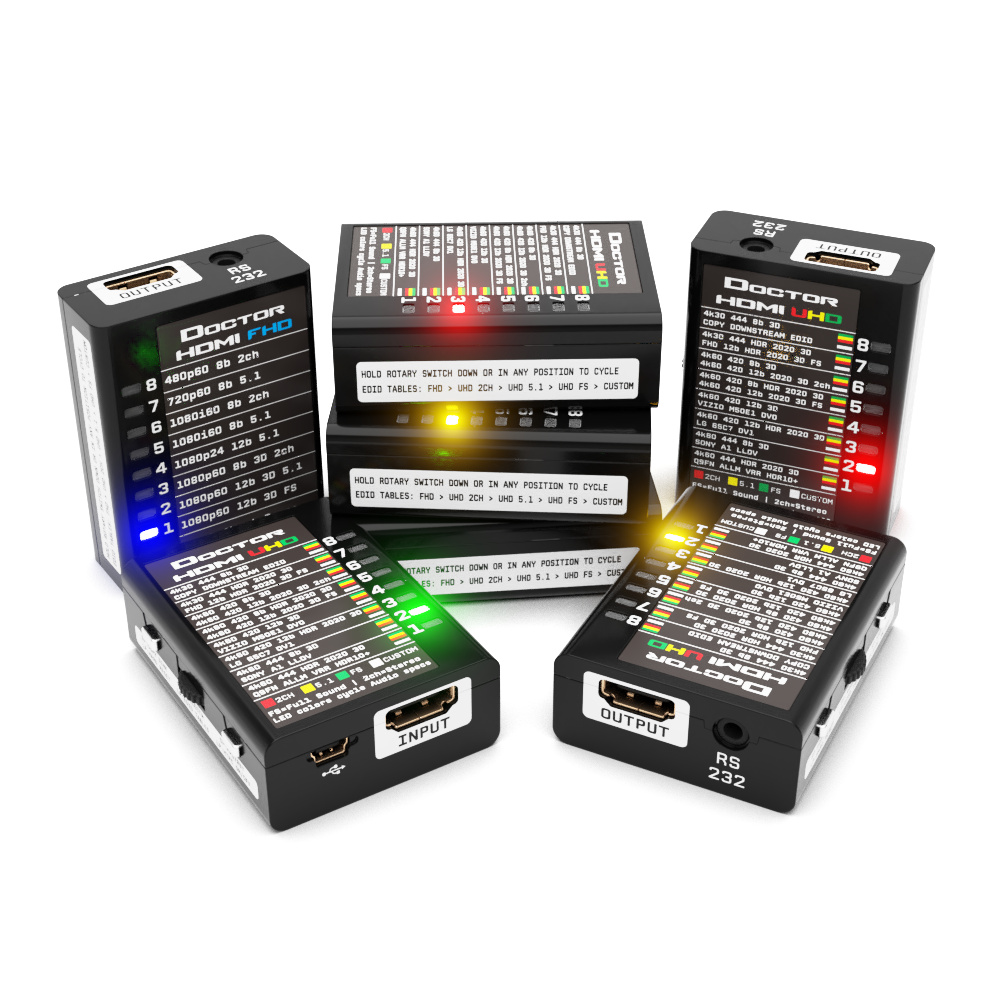

    [BOTTOM SIDE] BLUE LED MODE / FHD TABLES

  • 1 – 1080p60-444-225M-3D-FULLAUDIO
  • 2 – 1080p60-444-225M-3D-SPDIF
  • 3 – 1080p60-444-8b-150M-3D-STEREO
  • 4 – 1080p24-444-12b-112M-SPDIF
  • 5 – 1080i60-444-8b-75M-SPDIF
  • 6 – 1080i60-444-8b-75M-STEREO
  • 7 – 720p60-444-8b-75M-SPDIF
  • 8 – 480p60-444-8b-30M-STEREO
    [TOP SIDE] GREEN LED MODE / UHD – FULL AUDIO TABLES

  • 1 – 4k60-444-600M-HDR-BT2020-3D-FULLAUDIO
  • 2 – 4k60-444-600M-3D-FULLAUDIO
  • 3 – 4k60-420-12b-450M-HDR-BT2020-3D-FULLAUDIO
  • 4 – 4k60-420-12b-450M-3D-FULLAUDIO
  • 5 – 4k60-420-8b-300M-HDR-BT2020-3D-FULLAUDIO
  • 6 – 4k60-420-8b-300M-3D-FULLAUDIO
  • 7 – 4k30-444-300M-HDR-BT2020-3D-FULLAUDIO
  • 8 – 4k30-444-300M-3D-FULLAUDIO
    [TOP SIDE] YELLOW LED MODE / UHD – SPDIF MAX LIMIT AUDIO TABLES

  • 1 – 4k60-444-600M-HDR-BT2020-3D-SPDIF
  • 2 – 4k60-444-600M-3D-SPDIF
  • 3 – 4k60-420-12b-450M-HDR-BT2020-3D-SPDIF
  • 4 – 4k60-420-12b-450M-3D-SPDIF
  • 5 – 4k60-420-8b-300M-HDR-BT2020-3D-SPDIF
  • 6 – 4k60-420-8b-300M-3D-SPDIF
  • 7 – 4k30-444-300M-HDR-BT2020-3D-SPDIF
  • 8 – 4k30-444-300M-3D-SPDIF
    [TOP SIDE] RED LED MODE / UHD – STEREO AUDIO TABLES

  • 1 – 4k60-444-600M-HDR-BT2020-3D-STEREO
  • 2 – 4k60-444-600M-3D-STEREO
  • 3 – 4k60-420-12b-450M-HDR-BT2020-3D-STEREO
  • 4 – 4k60-420-12b-450M-3D-STEREO
  • 5 – 4k60-420-8b-300M-HDR-BT2020-3D-STEREO
  • 6 – 4k60-420-8b-300M-3D-STEREO
  • 7 – 4k30-444-300M-HDR-BT2020-3D-STEREO
  • 8 – 4k30-444-300M-3D-STEREO
    [TOP SIDE] WHITE LED MODE / UHD – CUSTOM TABLES AND DOWNSTREAM COPY

  • 1 – SAMSUNG Q9FN XBOXLowLat HDR10+
  • 2 – SONY A1 – DV/LLDV Version 2
  • 3 – LG 65C7 – DV Version 1
  • 4 – VIZIO M50E1 – DV Version 0
  • 5 – 4k60-420-12b-450M-BT2020-3D-FULLAUDIO
  • 6 – 4k60-420-12b-450M-BT2020-3D-STEREO
  • 7 – 1080p60-12b-222M-HDR-BT2020-3D-FULLAUDIO
  • 8 – COPY DOWNSTREAM EDID

FAQ

Got questions ? We have answers !

What output power Dr.HDMI 4K can supply ?

When used with a power supply connected to the USB, it will give as much as the power supply is capable.

How do you switch between Banks ?

There are a total of forty (40) EDID banks inside the unit. When you press up or down button you can quickly move between any of them to select the desired one. Once you stop for a second or so, the system actually activates the selected EDID and starts the HPD (hot-plug) event. This is the event where Dr.HDMI 4K will inform the source device that EDID has changed so the source must reconfigure it’s own internal settings. This takes about 2 seconds as per standards. During this time you will not be able to change the EDID. After HPD event concludes you are free to change edid again if wanted.
If you press the copy sink button, the display’s EDID is copied and placed into the Custom EDID bank number 8 (White LED). Once it is done, HPD event is also created and completes in about 2 seconds.

How do you switch between EDID Tables ?

There are a total of 5 EDID Tables inside the unit (Each table includes 8 EDID banks). Please watch below video for an easy understanding on how to select the right EDID table and then the right EDID bank for your needs.

Download



Android and iOS APP are only available for the owners of GoBlue (optional Bluetooth and Infrared dongle).



Silabs Driver 4.0.0 for WIN11 Version USB2.0 USB3.0
[11-NOV-24] Silabs Driver 4.0.0 – ZIP – 5.35 Mo 4.0.0 WIN11 WIN11
Silabs Driver 4.0.0 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 4.0.0 – ZIP – 9.18 Mo 4.0.0 XP / VISTA / WIN7 / WIN8 / WIN10 WIN10
Silabs Driver 3.9.2 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 3.9.2 – ZIP – 1.65 Mo 3.9.2 XP / VISTA / WIN7 / WIN8 / WIN10 XP / VISTA / WIN7 / WIN8 / WIN10

Select the right drivers based on your Windows version and the USB port version you plan to use. Drivers only need to be installed once for all our devices.
Please note that if you connect your HDfury device to a WIN10 computer prior to any driver installation, WIN10 will install driver from the internet automatically, in such case you do not need to install any drivers manually and you can just proceed with using utility and updaters software from driver 3.9.2 directory. Each below downloads, once downloaded and extracted will provide utility and updaters for either 3.9.2 or 4.0.0 driver.

Dr HDMI 4K FW Update & EDID Utility (PC Windows Software) Version Format Size Date
[13-MAR-20] Dr.HDMI 4K FW0.8 & EDID Utility 1.2 – Zip – 10.7 Mo 0.8/1.2 ZIP 10.7 Mo 13-MAR-20
[10-DEC-19] Dr.HDMI 4K FW0.6 & EDID Utility 1.2 – Zip – 10.7 Mo 0.6/1.2 ZIP 10.7 Mo 10-DEC-19
EDID Collection Format Size Date
[23-MAY-19] HDfury EDID Collection – ZIP – 108 Ko ZIP 108 Ko 23-MAY-19
