Dr HDMI

$79.00

This Kit includes:

  • Dr HDMI Converter
  • 6' USB>mini USB cable
Clear selection
Qty
SKU: DRHDMI Categories: ,

Product Description

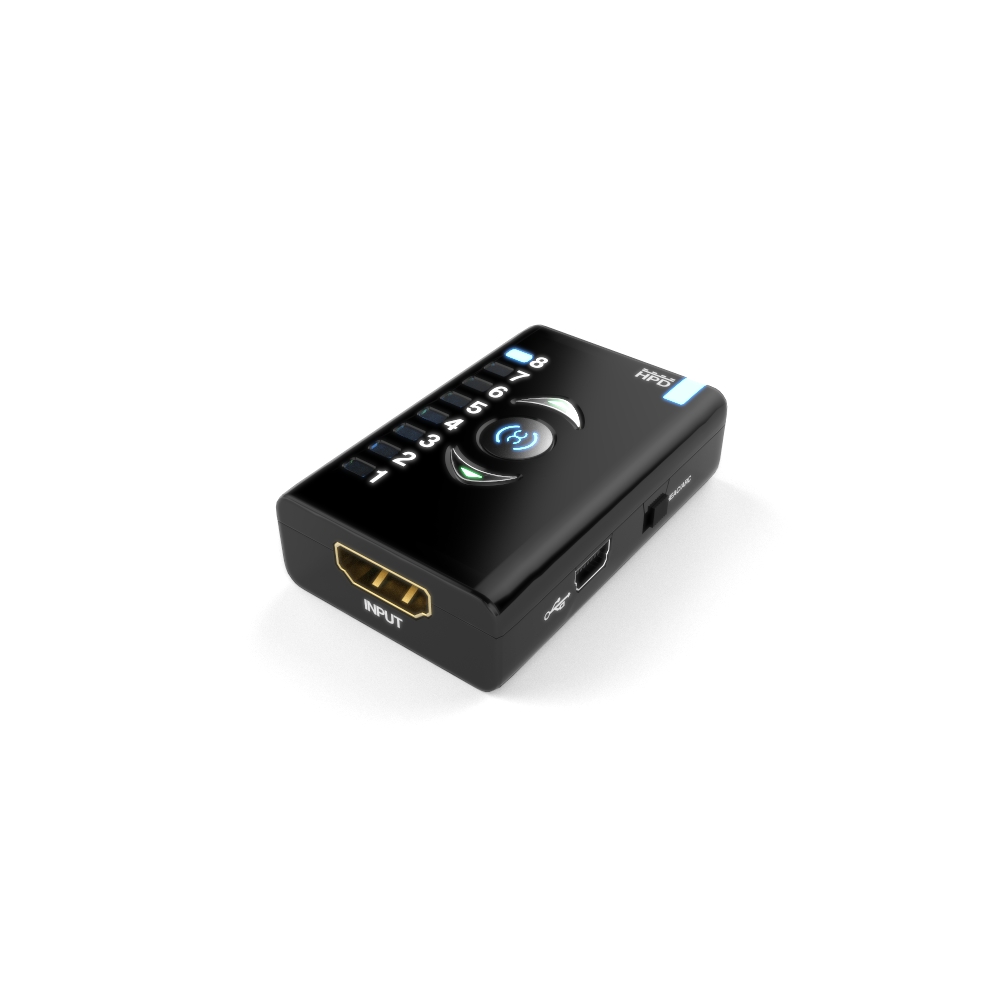

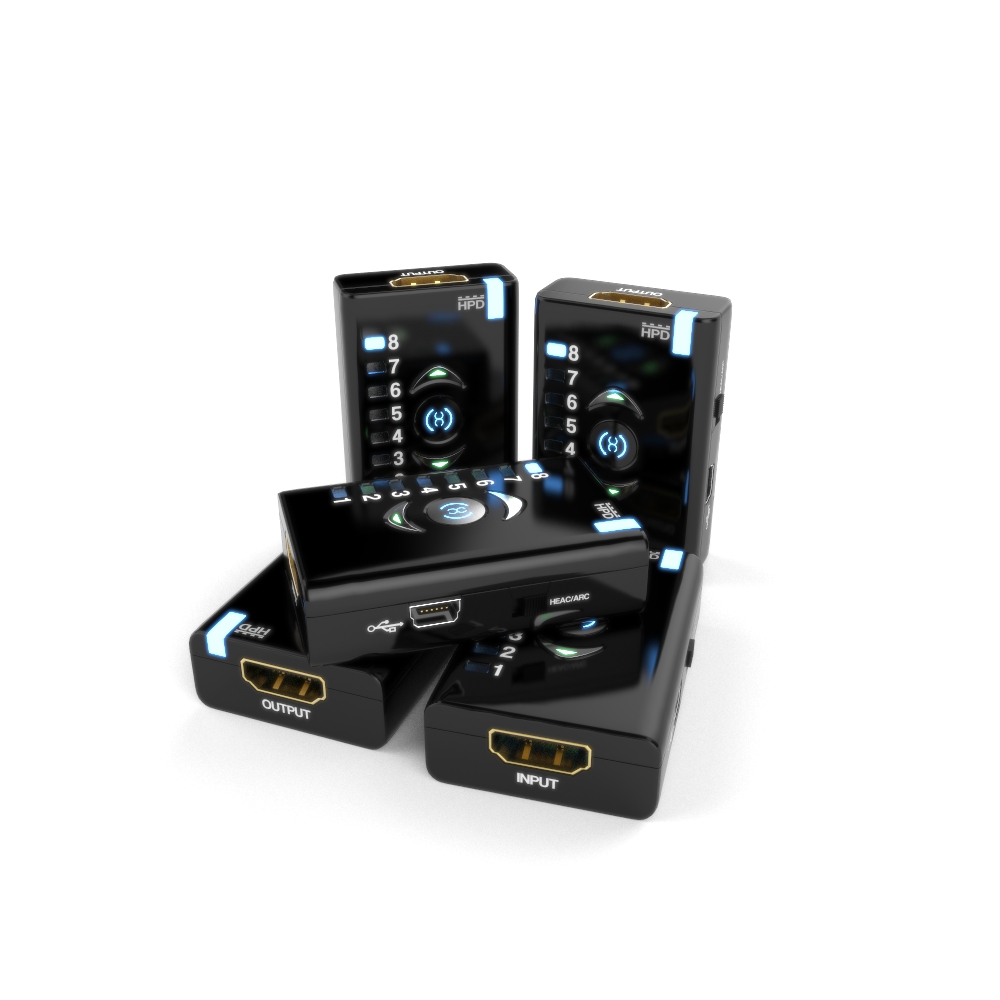

Dr. HDMI Key Features

Summary

Dr HDMI can help to solve most HDMI issues such as handshaking issue, compatibility issue and/or any EDID related issue. It help to keep a source always ON or tricked into a defined state which is especially useful for system integrators.
Dr HDMI can also boost signal integrity and extend +5v signal through a HDMI/DVI-D chain. For example, it can work hands in hands with HDfury products such as Gamer Edition to extend compatibility range. It can also be used to limit the source output resolution.
Dr HDMI acts as an EDID manager, HDMI/DVI-D emulator and repeater that comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more !

Highlight Features

  • Solve Most HDMI issues !
  • Fix HDMI handshaking issue
  • EDID Manager and Detective feature
  • Easy EDID table manipulation via USB port
  • HDMI/DVI-D emulator and repeater
  • Maintain 2K, 1920×1200, 1080p video without losing sync.
  • Predefined Banks (FullHD 3D, FullHD, 1080i, 720p, etc..)
  • User programmable EDID Banks
  • Sink EDID sniffing feature
  • Extand signal integrity up to 50 meters !
  • Can work standalone without any PSU connected (taking power from HDMI)
  • HDCP compliant

Technical Specs

Dr. HDMI Technical Specs

    HDMI 1.4a compliance
    8 EDID banks (5 pre-defined, 2 user programable, 1 copy from Sink device)
    Reset HPD-event on the fly !
    Up to 50 meters cable loss compensation
    Keep source’s HDMI/DVI-D output active
    USB upgradable and flashable from computer
    User programmable EDID Banks
    Sink EDID sniffing feature
    Extand signal integrity up to 50 meters !
    HDMI Pin14 on/off siwtch to fix HEAC/ARC compatibility issue
    Any resolution including HDMI standards
    Video Bandwidth : 2.25 Gbps
    Video support: Single-link 225Mhz, 2k, WUXGA, 1080p60/12bit deep color and x.v.color
    Audio support: Dolby True HD & DTS Master Audio
    Input cable equalization
    Support extended EDID CEA861, 256 byte
    HDCP Pass-Through
    Lip Sync Pass-Through
    CEC Protocol Pass-Through
    Power : Universal USB power adaptor
    Compliance: HDCP/FCC/CE
    Warranty : 1 year (extendable)
    Dimension : 60mm W x 40mm D x 20mm H
    Net weight : 50 gramms
    Input/Output connector: HDMI female
    USB: Mini USB-B female connector

Getting Started

Getting Started with Dr. HDMI

Instructions and overview for Dr. HDMI

Doctor HDMI will solve most HDCP/HDMI issues by just being connected between source and display. Once connected it can be set on the fly to perform specific EDID and Hot plug event.
There are a total of eight EDID banks inside the unit. When you press up or down button you can quickly move between any of them to select the desired one. Once you stop for a second or so, the system actually activates the selected EDID and starts the HPD (hot-plug) event. This is the event where Dr.HDMI will inform the source device that EDID has changed so the source must reconfigure it’s own internal settings. This takes about 2 seconds as per standards. During this time you will not be able to change the EDID. After HPD event concludes you are free to change edid again if wanted.
If you press the middle button, the display’s EDID is copied and placed into the EDID bank number 8. Once it is done, HPD event is also created and completes in about 2 seconds.
EDID banks are separated as follows:

  • 1-5 : are presets factory configured and cannot be changed by user. However, They can be updated with a firmware update.
  • 6-7 : are user configurable by the PC software.
  • 8 : is the reserved one for downloading from the display.

This device also has internal logic to support HDCP streams by sniffing all DDC packets and filtering the EDID requests but passing all HDCP handshakes.
The PC software can be used to edit any of the parameters on the fly or it can be used to load/save any customer EDID.
Power is either drawn from the HDMI connector or from the USB port if connected.
Firmware upgrades can be sent with a single .exe file automatically so no additional software is needed. Just launch the .exe.
To fix compatibility or handshake issue between source and display you can also try to move the switch on the side in one or the other position.

List of Banks

  • 1. Full, unlimited, all 3D features enabled
  • 2. Full, unlimited, no 3D features
  • 3. 1080i limited – no 3D
  • 4. 720p limited – no 3D
  • 5. 480/576p limited -no 3D
  • 6&7 are special cases which initially hold the same info as #1 but they can be altered with PC software to be anything
  • 8. is the display EDID which can be read by pushing the middle button.
  • (Once you push the middle button, the contents are read from display and stored to #8 and it is activated)

FAQ

Got questions ? We have answers !

What output power Dr.HDMI can supply ?

When used with a power supply connected to the USB, it will give as much as the power supply is capable.
When used without a power supply (powering from HDMI) it will give whatever it can take from HDMI connector. Usually 50-500mA.

How do you switch between Banks ?

There are a total of eight EDID banks inside the unit. When you press up or down button you can quickly move between any of them to select the desired one. Once you stop for a second or so, the system actually activates the selected EDID and starts the HPD (hot-plug) event. This is the event where Dr.HDMI will inform the source device that EDID has changed so the source must reconfigure it’s own internal settings. This takes about 2 seconds as per standards. During this time you will not be able to change the EDID. After HPD event concludes you are free to change edid again if wanted.
If you press the middle button, the display’s EDID is copied and placed into the EDID bank number 8. Once it is done, HPD event is also created and completes in about 2 seconds.

Download

Silabs Driver 4.0.0 for XP/VISTA/WIN7/WIN8/WIN10 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 4.0.0 – ZIP – 9.18 Mo 4.0.0 XP / VISTA / WIN7 / WIN8 / WIN10 WIN10
Silabs Driver 3.9.2 for XP/VISTA/WIN7/WIN8 Version USB2.0 USB3.0
[16-APR-16] Silabs Driver 3.9.2 – ZIP – 1.65 Mo 3.9.2 XP / VISTA / WIN7 / WIN8 XP / VISTA / WIN7 / WIN8

Select the right drivers based on your Windows version and the USB port version you plan to use. Drivers only need to be installed once for all our devices.

Dr HDMI EDID Utility (PC Windows Software) Version Format Size Date
[20-MAY-17] Dr.HDMI EDID Utility 1.0 – Zip – 15.3 Mo 1.0 ZIP 15.3 Mo 20-MAY-17
EDID Collection Version Format Size Date
[20-MAY-17] SimulView EDID Banks (AUDIO: 2Ch & 5Ch) – Zip – 619 Octets 1.0 ZIP 619 octets 20-MAY-17

Customer reviews

5
6 ratings
1 Star
0%
2 Star
0%
3 Star
0%
4 Star
0%
5 Star
100%
Reviews
  • It totally worked! This is a great product ; it does the job and doesn’t heat at all and doesn’t need an extra power supply! I’m really satisfied.

  • Dr HDMI is a wonderful small device.

  • I realize that Dr. HDMI can be used to emulate the EDID for SimulView to work with PS3 SimulView games (thanks, it works great!).

  • Thought I’d close off this thread by saying the Dr. HDMI fixed the problem 100%, just as promised. I selected option 2 and the ATV3 now outputs 1080p/60. Then, once I had put black tape over the extra bright blue LEDs on the Dr. HDMI, everything was perfect ! Great device, thanks.

  • I have recieved dr.hdmi today. Works perfect , now dolby and dts with tv in the chain.

  • the DR.HDMI has helped considerably in stabilizing the audio/video drop outs going to my monitor and I have a number of pieces connected in between all of this.
